Wire, Electronics & Component Identification
EC-03
Wrap-Around Cable Labels
This product is intended for wire-harness manufacturers, equipment wiring, panel assembly and electrical-installation teams.
Request pricing for EC-03
Product overview
What this product covers

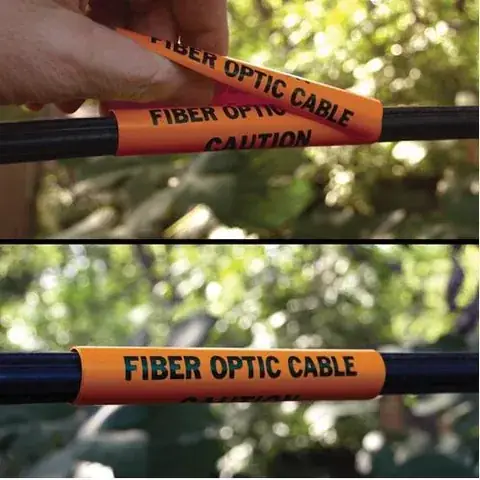

This product is intended for wire-harness manufacturers, equipment wiring, panel assembly and electrical-installation teams. The marker follows wire through cut, sleeve, termination, continuity test and assembly, with identity matching drawing, wire list and endpoints. Select heat-shrink, sleeve, wrap or flag from diameter, termination sequence, bend and reading space before print. Flexible adhesive labels that wrap fully or partially around larger cables, hoses and conduits. Wrap-around cable labels are sized from cable diameter, required overlap, curvature and data area. Material flexibility and adhesive must be compatible with the cable jacket and service environment. The full label face wraps the cable, while self-laminating labels reserve a separate clear protective tail. Zheye controls metal plates, layout and variable data; polyimide, polyester and wire-marker materials are sourced by declared construction and process class. This page presents one standard model, EC-03-PET, in Flexible polyester. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- Power cables
- Hoses and conduits

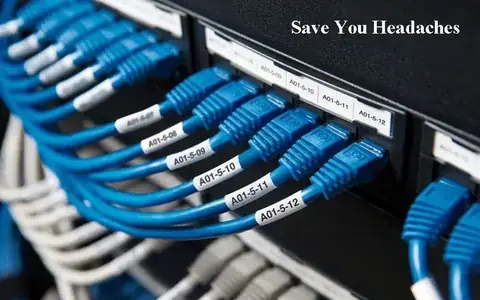

- Data-centre cabling
Buyers and teams
- wire-harness manufacturers, equipment wiring, panel assembly and electrical-installation teams
Materials
- Flexible polyester
Marking
- Circuit or route ID
- Barcode
- Colour coding
- Text
Installation
- Pressure-sensitive wrap application
Specifications
| Field | Documented value |
|---|---|
| Cable OD | Actual installed diameter |
| Wrap | Partial or full overlap |
| Jacket | Material and plasticizer compatibility reviewed |
| Exposure | Indoor, outdoor, oil or chemical conditions |
Recommended project inputs
- Wrap-Around Cable Labels; wire list and endpoint data, diameter, termination sequence, environment, printer, quantity and kit grouping.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Wrap-Around Cable Labels
Include product code EC-03 with the project inputs that apply.
