Wire, Electronics & Component Identification
EC-10

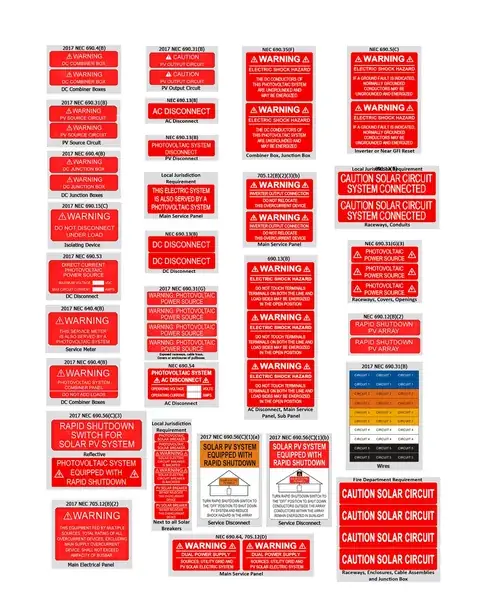

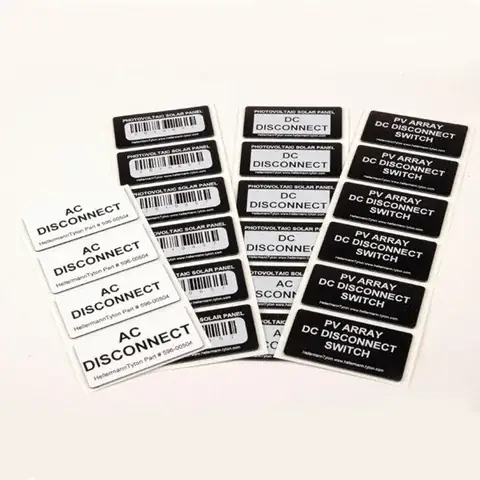

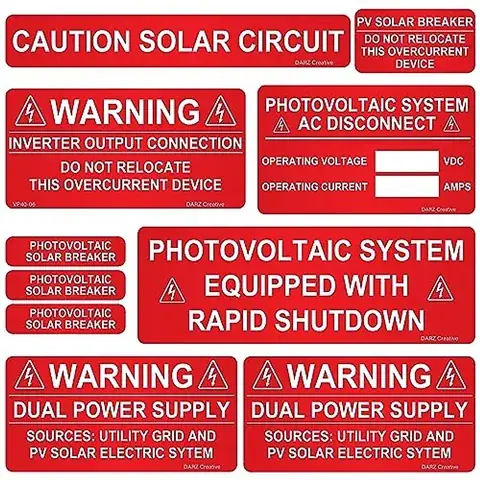

Photovoltaic System Labels
This product is intended for solar EPCs, installers, inspectors and plant O&M teams.
Request pricing for EC-10
Product overview
What this product covers
This product is intended for solar EPCs, installers, inspectors and plant O&M teams. The label matches single-line diagrams, circuits, inverters, disconnects and site safety requirements for installation, acceptance and maintenance. Confirm applicable rule, circuit and equipment list, location and solar exposure before material, text, colour and attachment. Durable labels and plates for PV circuits, disconnects, inverters, conduits and array equipment. Photovoltaic identification is exposed to UV, heat and outdoor weather and may be installed on cables, conduits, enclosures or structures. The responsible designer supplies the required wording, colours and current electrical code basis. Outdoor electrical exposure and system-specific warning content distinguish these labels from ordinary panel markers. Zheye controls metal plates, layout and variable data; polyimide, polyester and wire-marker materials are sourced by declared construction and process class. This page presents one standard model, EC-10-PET, in UV-reviewed polyester film. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- PV arrays
- Inverters and disconnects
- Solar cable routes
Buyers and teams
- solar EPCs, installers, inspectors and plant O&M teams
Materials
- UV-reviewed polyester film
Marking
- Circuit and voltage text
- Warning symbol
- Equipment ID
- QR Code
Installation
- Pressure-sensitive adhesive
- Cable ties
- Rivets or screws
Specifications
| Field | Documented value |
|---|---|
| Content | Customer-approved current electrical requirements |
| Surface | Cable, conduit, enclosure or structure |
| Exposure | UV, heat and weather reviewed |
| Mounting | Adhesive, cable tie or mechanical plate |
Recommended project inputs
- Photovoltaic System Labels; applicable rule, single-line diagram and equipment list, approved text and graphics, location, outdoor environment and quantity.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Photovoltaic System Labels
Include product code EC-10 with the project inputs that apply.
