EC-04
Cable Flag Labels
This product is intended for wire-harness manufacturers, equipment wiring, panel assembly and electrical-installation teams.
Request pricing for EC-04
Product overview
What this product covers

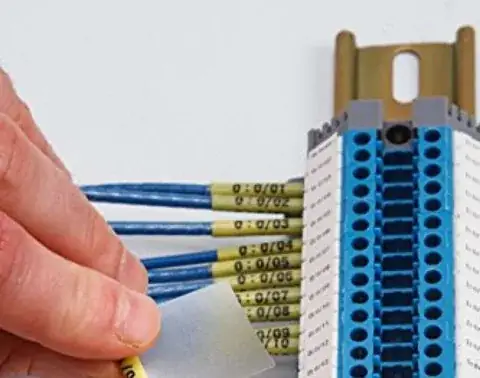

This product is intended for wire-harness manufacturers, equipment wiring, panel assembly and electrical-installation teams. The marker follows wire through cut, sleeve, termination, continuity test and assembly, with identity matching drawing, wire list and endpoints. Select heat-shrink, sleeve, wrap or flag from diameter, termination sequence, bend and reading space before print. Fold-over flag labels that provide a larger readable area on small-diameter wires and fibre cables. Cable flags fold around the wire and bond face-to-face, creating a projecting identification panel. Flag size, fold line, adhesive and orientation are controlled so the data remains readable after installation. The projecting flag provides more data area than a label wrapped directly onto a narrow cable. Zheye controls metal plates, layout and variable data; polyimide, polyester and wire-marker materials are sourced by declared construction and process class. This page presents one standard model, EC-04-PET, in Polyester film. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- Fibre-optic cables
- Patch cords
- Small data wires
Buyers and teams
- wire-harness manufacturers, equipment wiring, panel assembly and electrical-installation teams
Materials
- Polyester film
Marking
- From-to information
- Barcode
- QR Code
- Logo
Installation
- Fold-over pressure-sensitive application
Specifications
| Field | Documented value |
|---|---|
| Cable diameter | Used for fold and clearance |
| Flag | Finished length and height |
| Orientation | Left, right or centred fold |
| Data | Text, barcode or QR Code capacity |
Recommended project inputs
- Cable Flag Labels; wire list and endpoint data, diameter, termination sequence, environment, printer, quantity and kit grouping.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Cable Flag Labels
Include product code EC-04 with the project inputs that apply.
