Warehouse & Logistics Identification
WH-01
Warehouse Rack Location Labels
This product is intended for warehouse operations, inventory control, picking, replenishment, forklift and intralogistics teams.
Request pricing for WH-01
Product overview
What this product covers

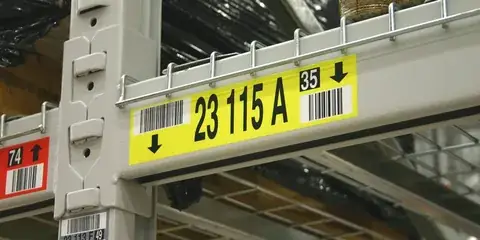

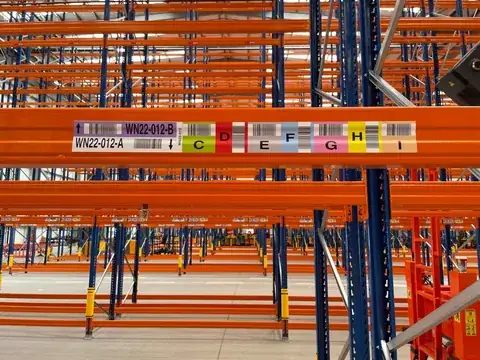

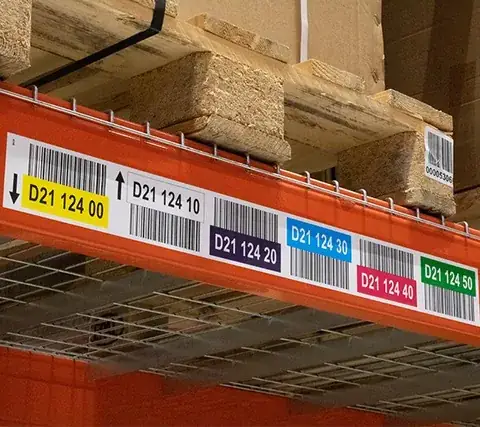

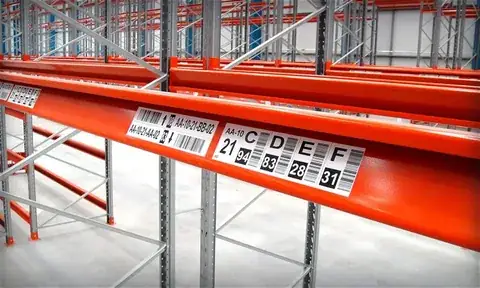

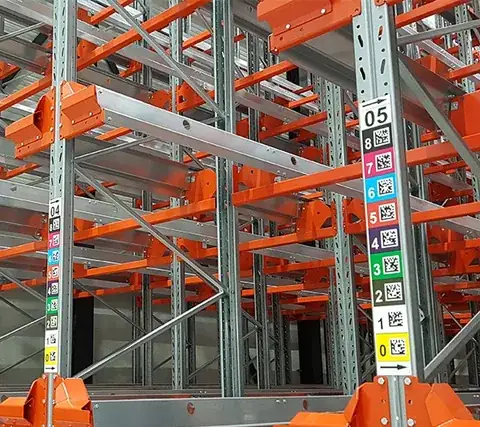

This product is intended for warehouse operations, inventory control, picking, replenishment, forklift and intralogistics teams. The label maps racks, levels, bins, pallets or totes to WMS locations and inventory records for put-away, picking, counting and moves. Set location hierarchy, barcode size and orientation from working distance and scanner before attachment, colour and wear resistance. Barcode and human-readable location labels sized for beams, uprights and routine scanner access. Rack location labels identify an exact aisle, bay, level and position. The label layout is generated from the approved location file, with character height and barcode dimensions selected for the installed scan distance. This is the standard single-location adhesive format; multi-level and long-range suspended formats use different layouts. Zheye controls layout, codes and serialized output. Magnetic, retroreflective and adhesive constructions use purchased materials identified by product class. This page presents one standard model, WH-01-PET, in Polyester label stock. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- Pallet racking
- Pick faces
- Reserve storage
Buyers and teams
- warehouse operations, inventory control, picking, replenishment, forklift and intralogistics teams
Materials
- Polyester label stock
Marking
- Barcode
- Large human-readable code
- Colour zone
- Check digit
Installation
- Pressure-sensitive adhesive
- Label holder
- Riveted plate
Specifications
| Field | Documented value |
|---|---|
| Barcode artwork | Human-readable ID plus verified 1D or 2D symbol from released location data |
| Location structure | Aisle, bay, level and position fields |
| Barcode | Customer-specified symbology and check rules |
| Scan distance | Confirmed with scanner and mounting position |
| Installation surface | Clean painted beam, holder or rigid plate |
Recommended project inputs
- Warehouse Rack Location Labels; WMS location or unit data, barcode rule, scanner and distance, surface, colours, quantity and zone packing.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Warehouse Rack Location Labels
Include product code WH-01 with the project inputs that apply.
