Warehouse & Logistics Identification
WH-04
Warehouse Aisle & Bay Signs
This product is intended for warehouse planners, operations supervisors, forklift drivers, picking, replenishment and intralogistics teams.
Request pricing for WH-04
Product overview
What this product covers

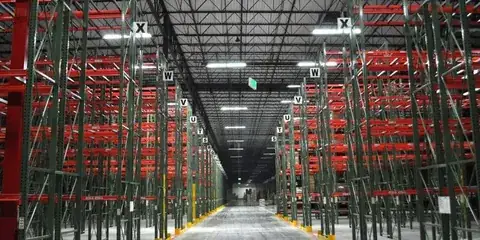

This product is intended for warehouse planners, operations supervisors, forklift drivers, picking, replenishment and intralogistics teams. Mounted at aisle entrances, rack ends or high-level decision points, it uses large letters, numbers, arrows and optional barcodes to identify zones, aisles and bays from the traffic approach. It is a long-range navigation sign, not a near-field bin label. Set every decision point from the warehouse location scheme and vehicle route before viewing distance, mounting height, one- or two-sided layout, suspension or projection and impact exposure. This page presents one standard model, WH-04-PLASTIC, in Durable rigid plastic. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- Aisle entrances
- Rack ends
- High-bay navigation
Buyers and teams
- warehouse operations, inventory control, picking, replenishment, forklift and intralogistics teams
Materials
- Durable rigid plastic
Marking
- Large text
- Directional arrows
- Barcode or QR Code
- Colour zones
Installation

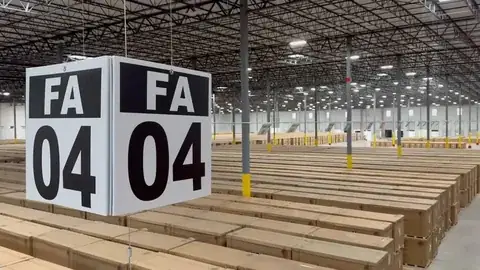

- Ceiling suspension

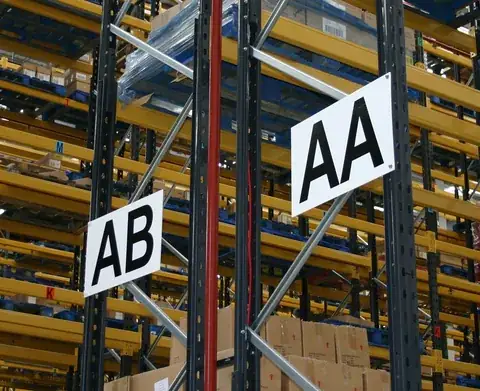

- Rack-end brackets
- Wall mounting
Specifications
| Field | Documented value |
|---|---|
| Barcode artwork | Human-readable ID plus verified 1D or 2D symbol from released location data |
| Viewing distance | Used to select sign and character size |
| Mounting | Flat, suspended or projected |
| Legend | Aisle, zone, bay or directional data |
| Artwork | Matched to facility sign schedule |
Recommended project inputs
- Warehouse Aisle & Bay Signs; warehouse plan and sign schedule, location codes, traffic route, viewing distance, height and orientation, barcode need, quantity and zone packing.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Warehouse Aisle & Bay Signs
Include product code WH-04 with the project inputs that apply.
