Warehouse & Logistics Identification
WH-02
Multi-Level Rack Labels
This product is intended for warehouse operations, inventory control, picking, replenishment, forklift and intralogistics teams.
Request pricing for WH-02
Product overview
What this product covers

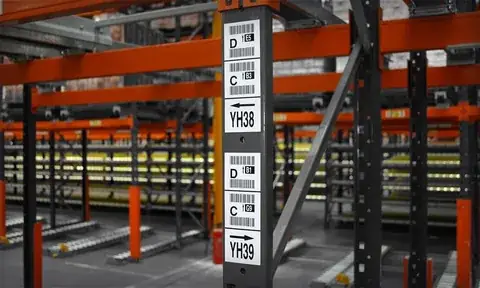

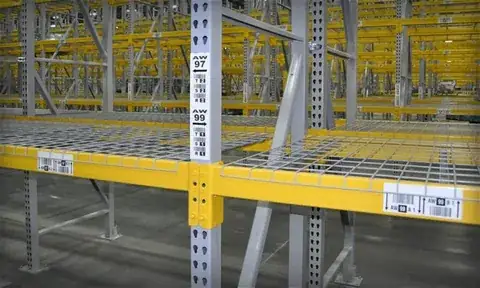

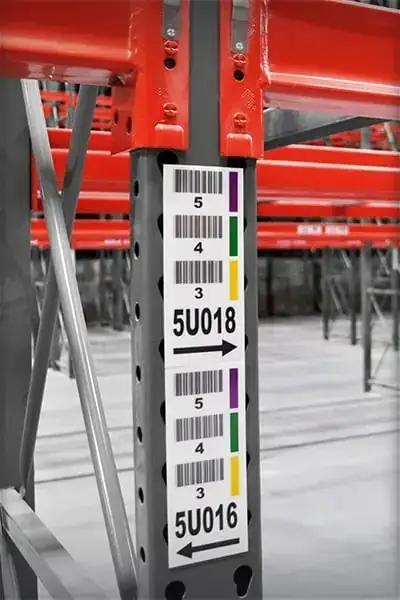

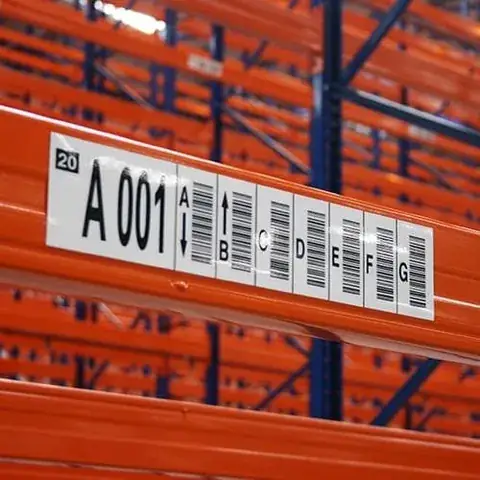

This product is intended for warehouse operations, inventory control, picking, replenishment, forklift and intralogistics teams. The label maps racks, levels, bins, pallets or totes to WMS locations and inventory records for put-away, picking, counting and moves. Set location hierarchy, barcode size and orientation from working distance and scanner before attachment, colour and wear resistance. Colour-tiered rack labels that present several vertical storage locations at one scanner-readable position. Multi-level rack labels combine multiple level codes on one beam label when upper locations cannot be scanned directly. Each tier is assigned a controlled colour, barcode and human-readable location according to the warehouse map. Several storage levels are consolidated into one ordered vertical or horizontal label rather than receiving separate beam labels. Zheye controls layout, codes and serialized output. Magnetic, retroreflective and adhesive constructions use purchased materials identified by product class. This page presents one standard model, WH-02-PET, in Polyester label stock. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- High-bay racking
- Forklift scanning

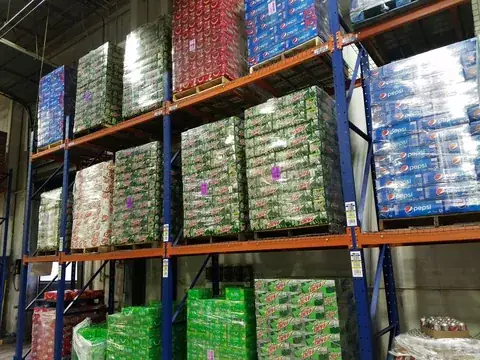

- Multi-level pallet storage
Buyers and teams
- warehouse operations, inventory control, picking, replenishment, forklift and intralogistics teams
Materials
- Polyester label stock
Marking
- Multiple barcodes
- Colour level blocks
- Human-readable locations
- Orientation arrows
Installation
- Pressure-sensitive adhesive
- Rigid holder
Specifications
| Field | Documented value |
|---|---|
| Barcode artwork | Human-readable ID plus verified 1D or 2D symbol from released location data |
| Levels per label | Defined by rack and scan workflow |
| Tier order | Matched to warehouse location logic |
| Colour mapping | Customer-approved level colours |
| Barcode size | Confirmed for scan distance |
Recommended project inputs
- Multi-Level Rack Labels; WMS location or unit data, barcode rule, scanner and distance, surface, colours, quantity and zone packing.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Multi-Level Rack Labels
Include product code WH-02 with the project inputs that apply.
