Warehouse & Logistics Identification
WH-10
Long-Range Retroreflective Barcode Signs
This product is intended for high-bay automatic identification, vehicle-mounted forklift scanning, WMS implementation and warehouse-engineering teams.
Request pricing for WH-10
Product overview
What this product covers
This product is intended for high-bay automatic identification, vehicle-mounted forklift scanning, WMS implementation and warehouse-engineering teams. Mounted on elevated racks, ceilings or distant locations, the large code and retroreflective background work with the specified scanner at the required range and angle. It is not an ordinary small barcode enlarged by eye: symbology, narrow bar or module, quiet zone, check digit, human-readable text, scanner optics, lighting and mounting angle are set together. Test a production-scale sample with the real scanner at minimum and maximum distance and site angle before volume production. This page presents one standard model, WH-10-REFLECTIVE-PLASTIC, in Retroreflective sheeting on rigid plastic. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- High-bay racks
- Ceiling locations
- Vehicle-mounted scanning
Buyers and teams
- warehouse operations, inventory control, picking, replenishment, forklift and intralogistics teams
Materials
- Retroreflective sheeting on rigid plastic
Marking
- Large barcode
- Human-readable location
- Check digit
- Directional cue
Installation
- Rack bracket

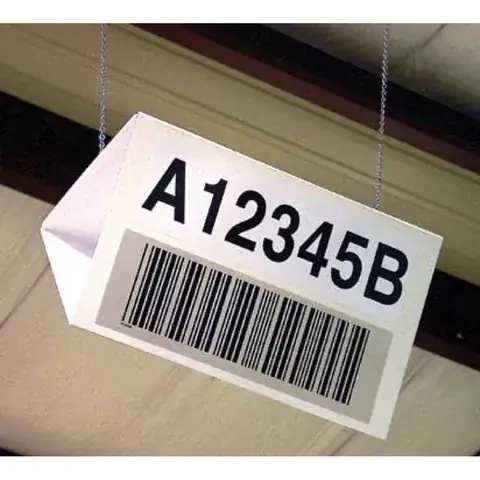

- Suspension
- Wall or ceiling mount
Specifications
| Field | Documented value |
|---|---|
| Barcode artwork | Human-readable ID plus verified 1D or 2D symbol from released location data |
| Scanner | Model and optics requested |
| Distance and angle | Site values used for sizing |
| Barcode | Symbology, ratio and quiet zone controlled |
| Mounting | Flat, suspended or angled bracket |
Recommended project inputs
- Long-Range Retroreflective Barcode Signs; WMS location data, symbology and check rule, scanner model, range and angle, lighting, location photo, available size, quantity and test requirement.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Long-Range Retroreflective Barcode Signs
Include product code WH-10 with the project inputs that apply.
