Vehicle, Fleet & Marine Identification
VM-01

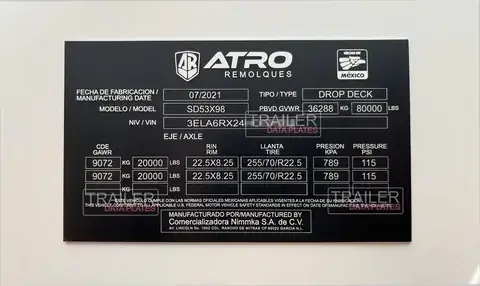

Trailer VIN & Data Plates
This product is intended for trailer and vehicle manufacturers, body builders, compliance engineering and final-quality teams.
Request pricing for VM-01
Product overview
What this product covers
This product is intended for trailer and vehicle manufacturers, body builders, compliance engineering and final-quality teams. VIN, manufacturer and customer-approved rating data must match the production record and specific vehicle, with revision and duplicate checks before fitment. Confirm data and layout from the authorised party before plate or label construction for location, surface, weather and tamper need. Controlled plates for trailer identifiers, manufacturer data and customer-authorised rating fields. Trailer plates reproduce the VIN and technical fields supplied by the authorised manufacturer. Plate data, revision, duplicate control and mounting are approved before production; Zheye does not issue VINs or certify ratings. The layout is specific to trailer identity and manufacturer-controlled rating data. Zheye reproduces the VIN and ratings supplied by the authorised manufacturer. It does not assign VINs, determine GVWR/GAWR or certify the trailer. This page presents one standard model, VM-01-AL-ANOD, in Anodized aluminium. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- Utility trailers
- Commercial trailers
- Special-purpose trailers
Buyers and teams
- trailer and vehicle manufacturers, body builders, compliance engineering and final-quality teams
Materials
- Anodized aluminium
Marking
- Mechanical stamping
- Laser engraving
- Variable VIN
- Barcode or Data Matrix
Installation
- Rivets
- Screws
- Tamper-aware adhesive label
Specifications
| Field | Documented value |
|---|---|
| Material thickness | Anodized aluminium 0.3-3.0 mm |
| VIN | Customer-authorised identifier |
| Data fields | Manufacturer-approved ratings and model data |
| Revision | Controlled artwork or drawing |
| Mounting | Body material and hole pattern |
Recommended project inputs
- Trailer VIN & Data Plates; manufacturer-authorised data, VIN and rating fields, artwork revision, location, environment, quantity and number list.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Trailer VIN & Data Plates
Include product code VM-01 with the project inputs that apply.
