Vehicle, Fleet & Marine Identification
VM-06
Engine, Axle & Component Plates
This product is intended for engine, axle, gearbox and transport-component manufacturers, remanufacturers and quality-traceability teams.
Request pricing for VM-06
Product overview
What this product covers

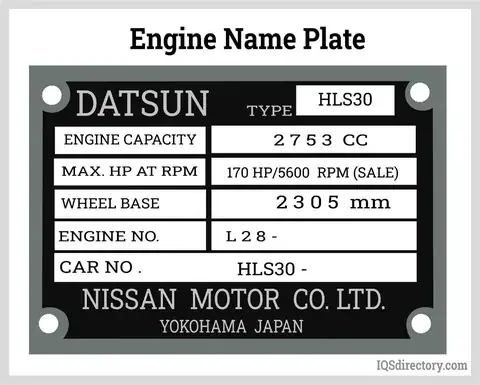

This product is intended for engine, axle, gearbox and transport-component manufacturers, remanufacturers and quality-traceability teams. The plate links component model, serial and approved parameters to production, test, vehicle fitment and service records. Set component data and installation envelope before construction for oil, heat, vibration, curvature and interface. Compact metal plates for drivetrain, axle, gearbox and transport-component model and serial data. Component plates carry dense identity and rating fields in a small area exposed to oil, heat, vibration and cleaning. Plate thickness, curvature and mounting pattern are matched to the housing drawing. The compact, mechanically mounted component format is tailored to drivetrain and transport assemblies. Zheye manufactures metal identity plates and controls variable data. Adhesive label stock and security constructions are sourced; the vehicle, vessel or component manufacturer owns identifier and rating authority. This page presents one standard model, VM-06-AL-ANOD, in Anodized aluminium. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- Engines
- Axles and differentials
- Gearboxes and drive units
Buyers and teams
- engine, axle, gearbox and transport-component manufacturers, remanufacturers and quality-traceability teams
Materials
- Anodized aluminium
Marking
- Laser engraving
- Mechanical stamping
- Variable serial
- Data Matrix
Installation
- Rivets
- Screws
- Housing clips
- Approved adhesive
Specifications
| Field | Documented value |
|---|---|
| Material thickness | Anodized aluminium 0.3-3.0 mm |
| Data | Model, serial, ratio and approved rating fields |
| Housing | Flat or curved surface |
| Exposure | Oil, heat, vibration and cleaning reviewed |
| Mounting | Drawing-controlled holes or adhesive |
Recommended project inputs
- Engine, Axle & Component Plates; component type, model, serial and approved data, mounting drawing, environment, size and holes, quantity.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Engine, Axle & Component Plates
Include product code VM-06 with the project inputs that apply.
