Vehicle, Fleet & Marine Identification
VM-05
Boat Builder & Capacity Plates
This product is intended for boat builders, shipyards, yacht and workboat construction, survey and delivery-quality teams.
Request pricing for VM-05
Product overview
What this product covers

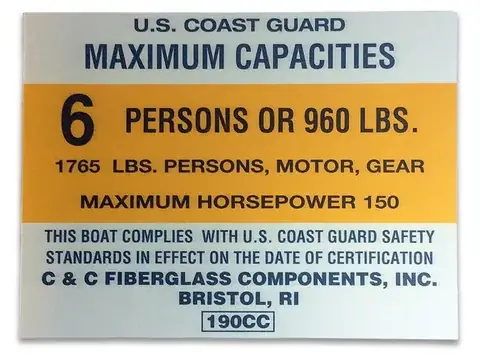

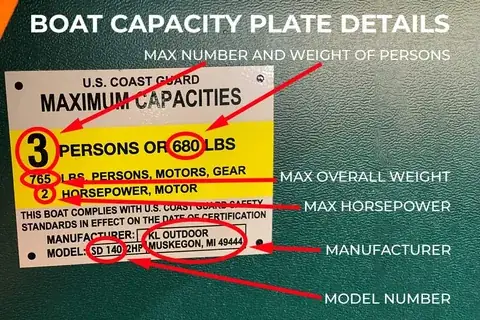

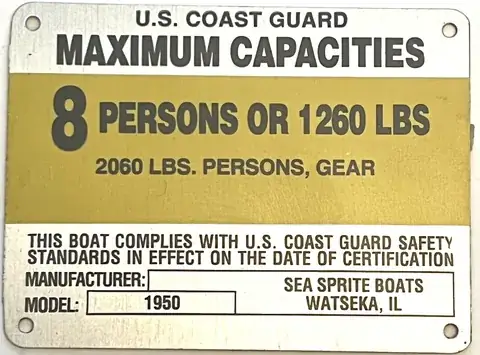

This product is intended for boat builders, shipyards, yacht and workboat construction, survey and delivery-quality teams. It presents builder identity, boat model and person, load, power or other operating data approved by the responsible builder or authority and maps them to the controlled vessel file. Zheye reproduces approved values and units and does not calculate capacity or certify the craft. Lock fields, units, warnings and revision before material and attachment for console or hull location, salt, UV, cleaning and galvanic compatibility. This page presents one standard model, VM-05-AL-ANOD, in Anodized aluminium. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- Recreational boats
- Workboats
- Marine equipment consoles
Buyers and teams
- boat builders, shipyards, yacht and workboat construction, survey and after-sales teams
Materials
- Anodized aluminium
Marking
- Capacity data
- Model and builder text
- Warnings
- Variable serial
Installation
- Rivets
- Screws
- Approved marine adhesive
Specifications
| Field | Documented value |
|---|---|
| Material thickness | Anodized aluminium 0.3-3.0 mm |
| Data authority | Builder-approved fields and units |
| Layout | listed for the selected model artwork |
| Exposure | UV, saltwater and cleaning reviewed |
| Mounting | Console, hull or equipment surface |
Recommended project inputs
- Boat Builder & Capacity Plates; vessel and build number, approved HIN or capacity data, location, marine environment, size, holes and quantity.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Boat Builder & Capacity Plates
Include product code VM-05 with the project inputs that apply.
