Safety, Facility & Wayfinding Signs
SF-10
Facility Wayfinding Signs
This product is intended for facility managers, hospital and school estates, property operations, architects and branded-wayfinding teams.
Request pricing for SF-10
Product overview
What this product covers

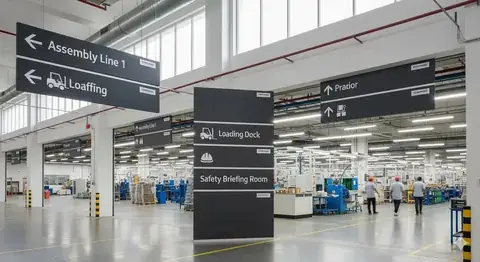

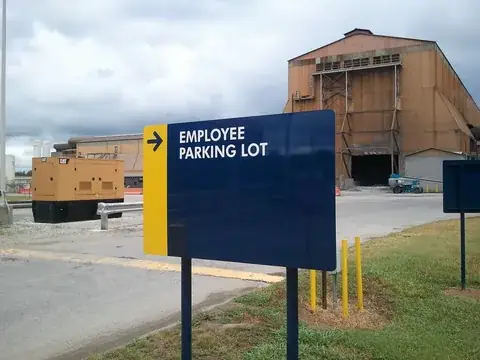

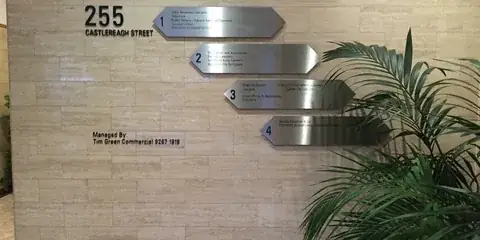

This product is intended for facility managers, hospital and school estates, property operations, architects and branded-wayfinding teams. Room, floor, department and direction information follows one sign schedule, naming system and arrow logic so visitors can continue through every decision point. Complete the location and information hierarchy before layout and construction for viewing distance, accessibility, orientation and environment. Room, department, directional and destination signs coordinated across a facility sign schedule. Wayfinding signs create a consistent hierarchy of destinations, arrows, room names and identifiers. Typeface, contrast, mounting height and tactile or accessibility requirements are taken from the customer's design and local brief. This is a coordinated navigation system rather than a safety warning or warehouse location code. Zheye produces the printed, engraved or cut sign from customer-authorised safety content. Photoluminescent, reflective and adhesive materials are bought by declared performance class. This page presents one standard model, SF-10-AL, in Aluminium. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- Industrial campuses
- Hospitals and laboratories
- Commercial facilities
Buyers and teams
- facility managers, hospital and school estates, property operations, architects and branded-wayfinding teams
Materials
- Aluminium
Marking
- Room and destination text
- Directional arrows
- Pictograms
- Variable room numbers
Installation
- Wall mount
- Ceiling suspension
- Projecting bracket
- Post
Specifications
| Field | Documented value |
|---|---|
| Sign family | Directional, room, directory or identification |
| Schedule | Location-by-location data file |
| Mounting | Wall, ceiling, post or projection |
| Accessibility | Customer-specified tactile and visual requirements |
Recommended project inputs
- Facility Wayfinding Signs; floor plans, sign schedule, room and department names, direction, brand rules, accessibility, mounting and quantity.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Facility Wayfinding Signs
Include product code SF-10 with the project inputs that apply.
