Safety, Facility & Wayfinding Signs
SF-04
Electrical Hazard & Arc-Flash Labels
This product is intended for electrical-safety engineers, arc-flash study teams, EHS, switchgear manufacturers, facility electrical maintenance and project contractors.
Request pricing for SF-04
Product overview
What this product covers

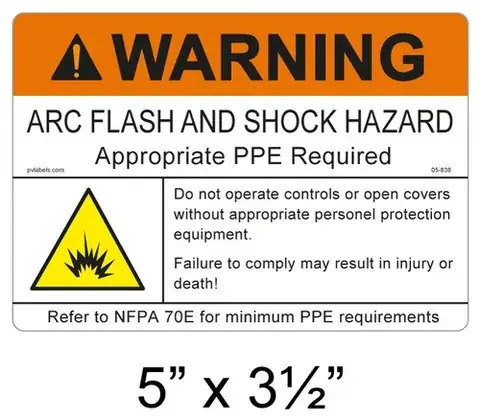

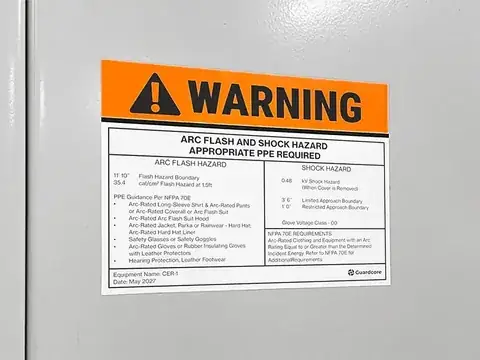

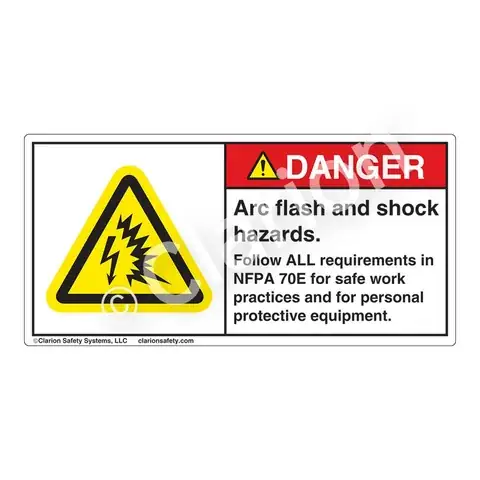

This product is intended for electrical-safety engineers, arc-flash study teams, EHS, switchgear manufacturers, facility electrical maintenance and project contractors. Each label maps to a specific enclosure or equipment ID and reproduces the system voltage, equipment identity, study values, boundaries, PPE or other fields approved by the responsible engineer. Zheye controls variable-data layout, identifier checks and physical production; it does not calculate incident energy or determine the warning level. Lock the current study data, equipment schedule and data owner before enclosure surface, size, adhesive, cleaning exposure and replacement method. This page presents one standard model, SF-04-PET, in Polyester label stock. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- Switchgear
- Control panels
- Electrical rooms
Buyers and teams
- electrical-safety engineers, arc-flash study teams, EHS, switchgear manufacturers, facility electrical maintenance and project contractors
Materials
- Polyester label stock
Marking
- Variable electrical data
- Barcode or QR Code
- Equipment ID
- Approved hazard graphics
Installation
- Pressure-sensitive adhesive
- Screw-mounted placard
Specifications
| Field | Documented value |
|---|---|
| Data authority | Customer or engineer supplied |
| Variable fields | Equipment and study values |
| Revision | Artwork and data-file controlled |
| Surface | Panel finish and environment reviewed |
Recommended project inputs
- Electrical Hazard & Arc-Flash Labels; approved equipment data file, field definitions, revision and owner, enclosure photo and surface, size, quantity, sequence and replacement requirement.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Electrical Hazard & Arc-Flash Labels
Include product code SF-04 with the project inputs that apply.
