RFID, NFC & Smart Identification
SI-07

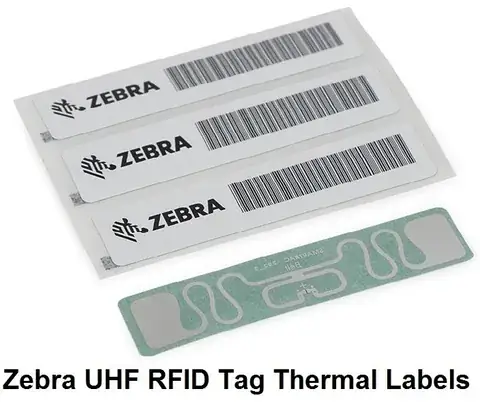

Dual RFID & Barcode Asset Labels
This product is intended for RFID integrators, warehouse automation, asset-management and digital-manufacturing teams.
Request pricing for SI-07
Product overview
What this product covers
This product is intended for RFID integrators, warehouse automation, asset-management and digital-manufacturing teams. The EPC or chip identity maps to WMS, MES or asset data and must pass reading tests on the real object, orientation and reader environment. Confirm band, chip and memory, encoding, range and mounting material first; metal, liquid and stacking conditions need separate validation. Smart asset labels combining an RFID identity with a visible barcode and human-readable serial number. Dual-technology labels provide both radio and line-of-sight identification. The EPC, printed barcode and human-readable ID are generated from one approved data record and verified for matching before packing. One physical label carries two independent reading methods tied to the same asset identity. Every quotation states the chip/inlay model, frequency, memory, housing and encoding service. Zheye does not substitute an unspecified RFID chip under a generic product name. This page presents one standard model, SI-07-PET, in Polyester face stock. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- IT assets
- Tools and equipment
- Institutional inventories
Buyers and teams
- RFID integrators, warehouse automation, asset-management and digital-manufacturing teams
Materials
- Polyester face stock
Marking
- RFID encoding
- Barcode
- Human-readable ID
- Logo
Installation
- Pressure-sensitive adhesive
- Mechanical tag housing where required
Specifications
| Field | Documented value |
|---|---|
| Frequency families | LF 125/134.2 kHz; HF/NFC 13.56 MHz; UHF RAIN RFID 860-960 MHz |
| Data matching | RFID, barcode and printed ID from one record |
| Frequency and IC | System-specified |
| Barcode | Symbology and scanner confirmed |
| Surface | Metal or non-metal construction selected |
Recommended project inputs
- Dual RFID & Barcode Asset Labels; regional frequency, chip model, encoding data, object material, reader and range, quantity and validation scenario.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Dual RFID & Barcode Asset Labels
Include product code SI-07 with the project inputs that apply.
