Metal Plates & Nameplates
MP-04
Rating & Data Plates
This product is intended for equipment OEM, product-engineering, regulatory and quality, technical-documentation and final-inspection teams.
Request pricing for MP-04
Product overview
What this product covers

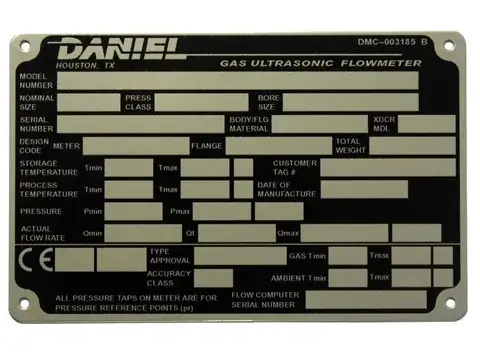

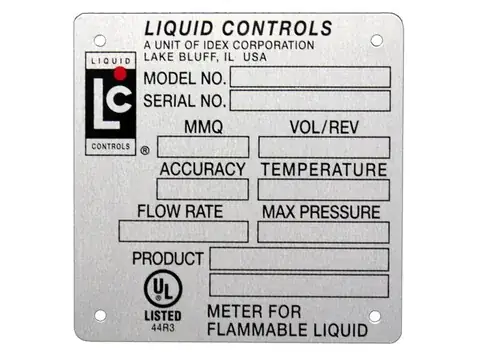

This product is intended for equipment OEM, product-engineering, regulatory and quality, technical-documentation and final-inspection teams. It fixes customer-approved fields such as model, voltage, current, power, pressure, temperature, capacity and serial data to the equipment and keeps them aligned with the controlled drawing, BOM revision and variable-data file. We reproduce approved values; we do not calculate ratings or determine certification content. Lock the master artwork, units, fixed and variable fields, serial file and revision before material and attachment. Rating and data plates use a stable grid where technical accuracy matters more than a simple identity line. This page presents one standard model, MP-04-AL-ANOD, in Anodized aluminium. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- Electrical equipment
- Mechanical systems
- Export machinery
Buyers and teams
- equipment OEM, product-engineering, regulatory and quality, technical-documentation and final-inspection teams
Materials
- Anodized aluminium
Marking
- Laser engraving
- Mechanical engraving
- Variable data
- Colour filling
Installation
- Rivets
- Screws
- Approved adhesive
Specifications
| Field | Documented value |
|---|---|
| Material thickness | Anodized aluminium 0.3-3.0 mm |
| Layout | Fixed and variable data fields |
| Readability | Selected for viewing distance |
| Data source | Approved table or spreadsheet |
| Revision | Drawing and part-number controlled |
Recommended project inputs
- Rating & Data Plates; approved master, field and unit table, fixed values and variable-data file, revision, equipment surface, attachment, environment and quantity.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Rating & Data Plates
Include product code MP-04 with the project inputs that apply.
