Metal Plates & Nameplates
MP-10
Pump Nameplates
This product is intended for pump manufacturers, skid builders, water-treatment projects and process-plant maintenance teams.
Request pricing for MP-10
Product overview
What this product covers

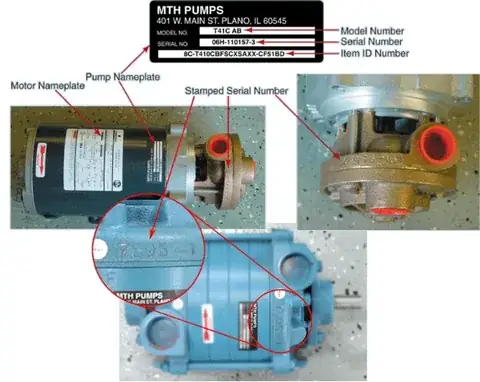

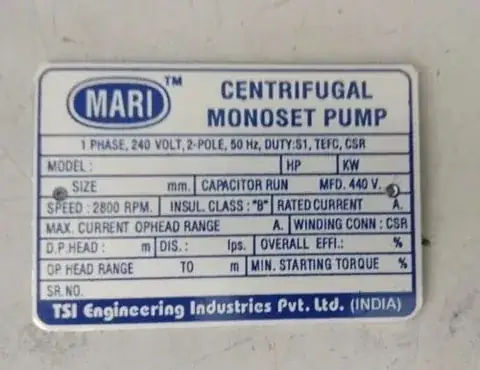

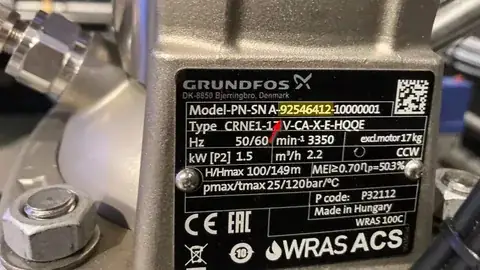

This product is intended for pump manufacturers, skid builders, water-treatment projects and process-plant maintenance teams. The plate links pump model, serial, duty and maintenance records to the physical unit for commissioning, spares and service. Confirm size, hole pitch and corrosion-suitable material at the mounting location before laying out customer-approved duty and identity data. Corrosion-reviewed plates for pump model, duty, serial and service information. Pump nameplates combine equipment identity with duty or service data in wet, chemical or outdoor locations. Material and fastening are selected after the pump surface and exposure are reviewed. Pump plates focus on fluid-service equipment, corrosion exposure and compact performance fields rather than motor electrical data. Zheye cuts, marks and finishes metal plates from released drawings and variable-data files. This page presents one standard model, MP-10-AL-ANOD, in Anodized aluminium. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- Process pumps
- Water systems
- Pump skids
Buyers and teams
- pump manufacturers, skid builders, water-treatment projects and process-plant maintenance teams
Materials
- Anodized aluminium
Marking
- Deep laser engraving
- Mechanical engraving
- Variable serial data
Installation
- Rivets
- Screws
- Housing clips where specified
Specifications
| Field | Documented value |
|---|---|
| Material thickness | Anodized aluminium 0.3-3.0 mm |
| Data fields | Model, serial, duty and service data |
| Exposure | Reviewed for moisture and chemicals |
| Plate form | Flat or housing-matched |
| Mounting pattern | Drawing-controlled |
Recommended project inputs
- Pump Nameplates; pump type, duty and serial data, mounting location, hole pitch, media or cleaning exposure and quantity.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Pump Nameplates
Include product code MP-10 with the project inputs that apply.
