MP-06
Motor Nameplates
This product is intended for motor manufacturers, gear-motor builders, repair workshops and rewinding specialists.
Request pricing for MP-06
Product overview
What this product covers

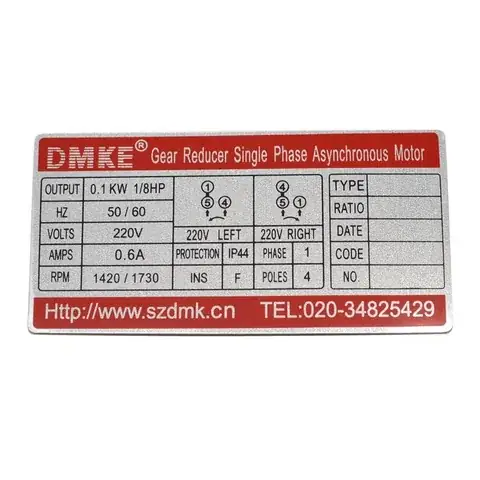

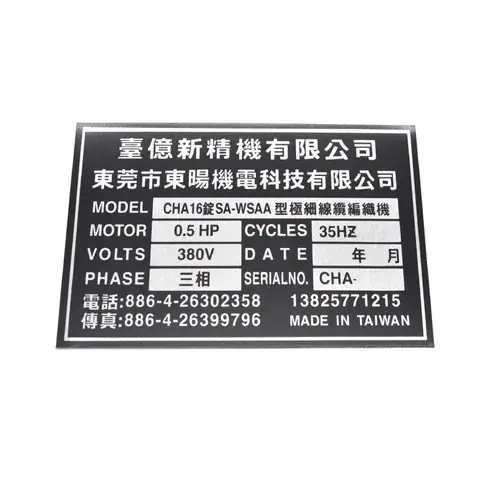

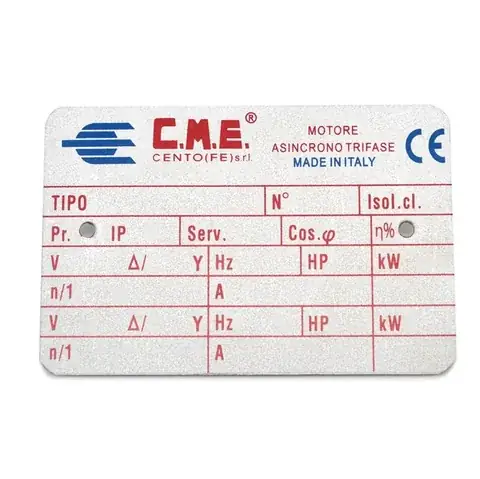

This product is intended for motor manufacturers, gear-motor builders, repair workshops and rewinding specialists. After repair or rewinding, the plate reconnects the motor to authorised ratings, serial data and service records; ratings are never inferred from a photograph. Have the customer approve the original ratings and revision first, then check curvature, hole pitch, size, material and field readability. Curved or flat motor plates with model, serial, electrical and performance information. Motor nameplates must fit limited curved surfaces while carrying dense technical data. Dimensions, curvature and character size are reviewed together before production. Unlike a flat machine plate, motor nameplates often require curvature, compact data fields and resistance to heat, oil and handling. Zheye cuts, marks and finishes metal plates from released drawings and variable-data files. This page presents one standard model, MP-06-AL-ANOD, in Anodized aluminium. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- Electric motors
- Gear motors
- Repair and rewinding
Buyers and teams
- motor manufacturers, gear-motor builders, repair workshops and rewinding specialists
Materials
- Anodized aluminium
Marking
- Laser engraving
- Mechanical engraving
- Variable serial data
Installation
- Rivets
- Screws
- Housing clips where specified
Specifications
| Field | Documented value |
|---|---|
| Material thickness | Anodized aluminium 0.3-3.0 mm |
| Data | Voltage, current, power, speed and serial |
| Curvature | Matched to housing |
| Thickness | Selected for forming and fixing |
Recommended project inputs
- Motor Nameplates; motor model, original plate data or maker record, rating-data approver, curvature and hole pitch, environment and quantity.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Motor Nameplates
Include product code MP-06 with the project inputs that apply.
