Metal Plates & Nameplates
MP-02
Machine Nameplates
This product is intended for equipment OEMs, contract manufacturers, system integrators, and retrofit or service teams.
Request pricing for MP-02
Product overview
What this product covers

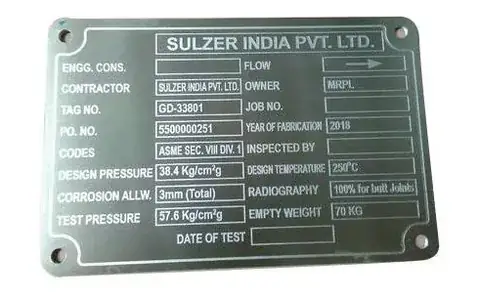

This product is intended for equipment OEMs, contract manufacturers, system integrators, and retrofit or service teams. The plate follows the drawing, BOM and equipment number through assembly, FAT, delivery and service, giving operators a fixed reference for model, serial and equipment identity. Start with the equipment fields, artwork revision and numbering rule, then confirm this model's material suitability, thickness and holes or adhesive for the service environment. Durable identification plates for machine model, manufacturer, serial and operating information. Machine nameplates organise the essential identity of a machine into a readable, repeatable format. They are suitable for new OEM production, retrofit work and replacement-plate programmes. Unlike a general metal nameplate, this product is structured around machine identity, serialisation and repeat ordering by drawing or part number. Zheye cuts, marks and finishes metal plates from released drawings and variable-data files. This page presents one standard model, MP-02-AL-ANOD, in Anodized aluminium. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- Production machinery
- Packaging equipment
- Workshop machines
Buyers and teams
- equipment OEMs, contract manufacturers, system integrators, and retrofit or service teams
Materials
- Anodized aluminium
Marking
- Deep laser engraving
- Mechanical engraving
- Serial numbering
- Logo marking
Installation
- Rivets
- Screws
- Approved adhesive
Specifications
| Field | Documented value |
|---|---|
| Material thickness | Anodized aluminium 0.3-3.0 mm |
| Data fields | Model, serial, year, manufacturer |
| Format | Flat or gently curved |
| Hole pattern | Drawing-controlled |
| Finish | Natural, anodized or brushed |
Recommended project inputs
- Machine Nameplates; equipment type, approved drawing or sample, field list, service environment, mounting method, quantity and serial-number file.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Machine Nameplates
Include product code MP-02 with the project inputs that apply.
