Metal Plates & Nameplates
MP-03
Equipment Identification Plates
This product is intended for equipment OEMs, contract manufacturers, system integrators, and retrofit or service teams.
Request pricing for MP-03
Product overview
What this product covers

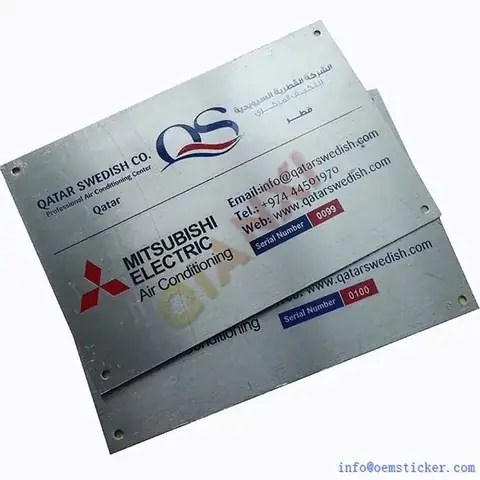

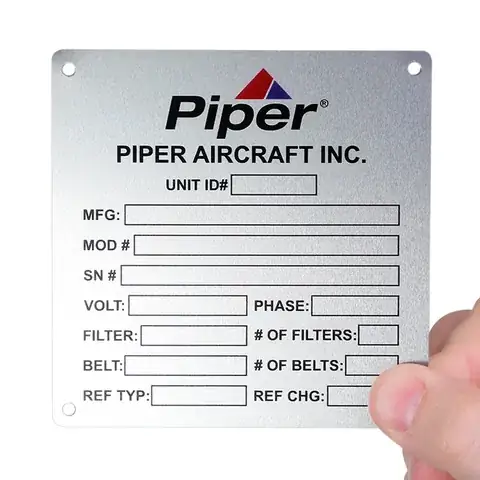

This product is intended for equipment OEMs, contract manufacturers, system integrators, and retrofit or service teams. The plate follows the drawing, BOM and equipment number through assembly, FAT, delivery and service, giving operators a fixed reference for model, serial and equipment identity. Start with the equipment fields, artwork revision and numbering rule, then confirm this model's material suitability, thickness and holes or adhesive for the service environment. Asset and identity plates for installed equipment, assemblies and facility records. Equipment identification plates connect a physical unit to asset records, manuals and maintenance systems. Layouts may contain a clear human-readable identifier alongside a machine-readable code. This product emphasises asset and facility identity rather than electrical ratings or regulatory data. Zheye cuts, marks and finishes metal plates from released drawings and variable-data files. This page presents one standard model, MP-03-AL-ANOD, in Anodized aluminium. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- Plant equipment
- Facility assets
- Skids and assemblies
Buyers and teams
- equipment OEMs, contract manufacturers, system integrators, and retrofit or service teams
Materials
- Anodized aluminium
Marking
- Sequential numbering
- QR Code
- Data Matrix
- Logo engraving
Installation
- Rivets
- Screws
- Cable attachment
- Approved adhesive
Specifications
| Field | Documented value |
|---|---|
| Material thickness | Anodized aluminium 0.3-3.0 mm |
| Identifier | Asset, unit or equipment code |
| Data carrier | Optional QR Code or Data Matrix |
| Shape | Rectangular or custom |
| Mounting | Matched to equipment surface |
Recommended project inputs
- Equipment Identification Plates; equipment type, approved drawing or sample, field list, service environment, mounting method, quantity and serial-number file.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Equipment Identification Plates
Include product code MP-03 with the project inputs that apply.
