Cable, Valve & Utility Identification
UV-07
Wire Markers
This product is intended for electrical contractors, panel builders, harness manufacturers and plant E&I maintenance teams.
Request pricing for UV-07
Product overview
What this product covers

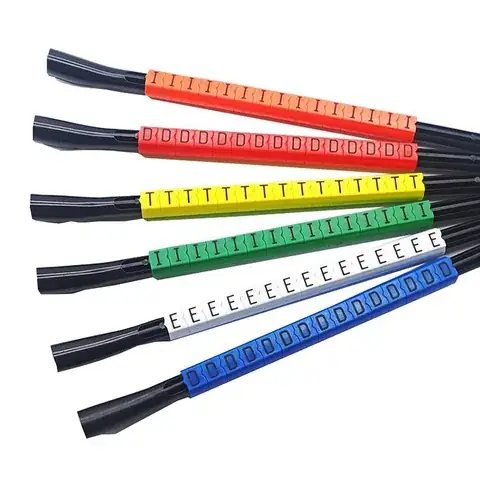

This product is intended for electrical contractors, panel builders, harness manufacturers and plant E&I maintenance teams. Wire, circuit, terminal and from-to identities must match drawings and wire lists through fabrication, termination, commissioning and troubleshooting. Choose sleeve, tag or wrap construction from cable diameter, termination stage and reading space before data and print method. Compact markers for individual conductors, terminal leads and bundled wire references. Wire markers carry short circuit or terminal identifiers where space is more limited than on cable tags. The sleeve, tie or clip interface is matched to wire diameter and installation access. Wire markers are smaller and conductor-focused, with short identifiers and a different attachment interface from cable tags. Zheye produces the marked metal tag or plate. Cable ties, banding and specialist fasteners are supplied as matched bought-in components. This page presents one standard model, UV-07-AL-ANOD, in Anodized aluminium. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- Control wiring
- Terminal cabinets
- Harness assembly
Buyers and teams
- electrical contractors, panel builders, harness manufacturers and plant E&I maintenance teams
Materials
- Anodized aluminium
Marking
- Laser engraving
- Sequential references
- Colour grouping
Installation
- Cable tie
- Wire loop
- Project-specific clip
Specifications
| Field | Documented value |
|---|---|
| Material thickness | Anodized aluminium 0.5-3.0 mm |
| Conductor range | Reviewed against wire or bundle |
| Identifier | Circuit or terminal reference |
| Format | Compact sleeve, tag or clip-compatible plate |
| Readability | Selected for cabinet access |
Recommended project inputs
- Wire Markers; cable or wire diameter, wire list, identification data, termination sequence, environment, tools and quantity.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Wire Markers
Include product code UV-07 with the project inputs that apply.
