Cable, Valve & Utility Identification
UV-05
Transformer Identification Plates
This product is intended for utilities, distribution maintenance, line contractors and public-infrastructure asset teams.
Request pricing for UV-05
Product overview
What this product covers

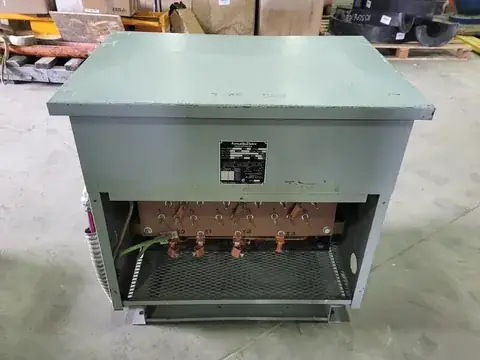

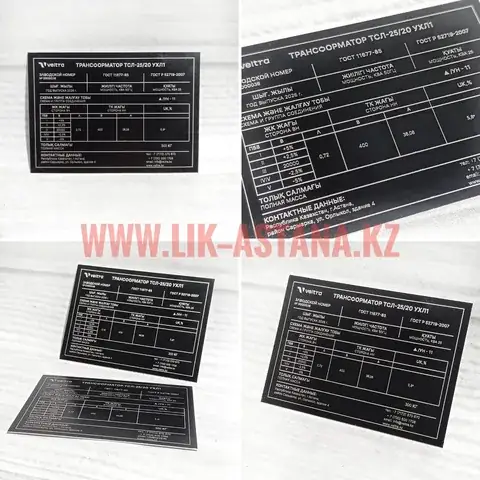

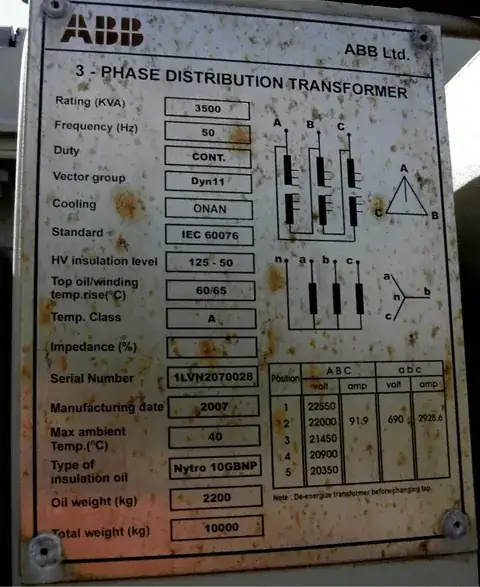

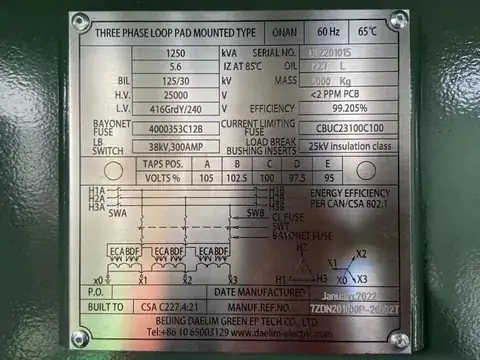

This product is intended for utilities, distribution maintenance, line contractors and public-infrastructure asset teams. Pole, transformer and field-asset identities map to GIS, inspection and work-order systems for patrol, fault location and asset updates. Set asset code, reading distance and mounting height before weather-resistant material, character size, reflectivity and hardware. Outdoor plates for transformer asset numbers, warnings and maintenance references. Transformer identification plates combine equipment identity with outdoor readability. The plate layout can include a large field identifier and smaller service or record information. This product is fixed to an enclosure or structure and differs from hanging cable and valve tags. Zheye produces the marked metal tag or plate. Cable ties, banding and specialist fasteners are supplied as matched bought-in components. This page presents one standard model, UV-05-AL-ANOD, in Anodized aluminium. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- Distribution transformers
- Substations
- Utility compounds
Buyers and teams
- utilities, distribution maintenance, line contractors and public-infrastructure asset teams
Materials
- Anodized aluminium
Marking
- Deep laser engraving
- Colour filling
- Sequential numbering
- QR Code
Installation
- Rivets
- Screws
- Stainless steel banding
Specifications
| Field | Documented value |
|---|---|
| Material thickness | Anodized aluminium 0.5-3.0 mm |
| Data | Asset, transformer or location ID |
| Contrast | High-visibility layout |
| Holes | Drawing-controlled |
| Environment | Outdoor electrical infrastructure |
Recommended project inputs
- Transformer Identification Plates; asset-code list, GIS or line grouping, mounting height, viewing distance, outdoor environment, attachment and quantity.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Transformer Identification Plates
Include product code UV-05 with the project inputs that apply.
