Cable, Valve & Utility Identification
UV-11
Survey Markers
This product is intended for survey practices, civil sites, environmental field teams and plot-monitoring projects.
Request pricing for UV-11
Product overview
What this product covers

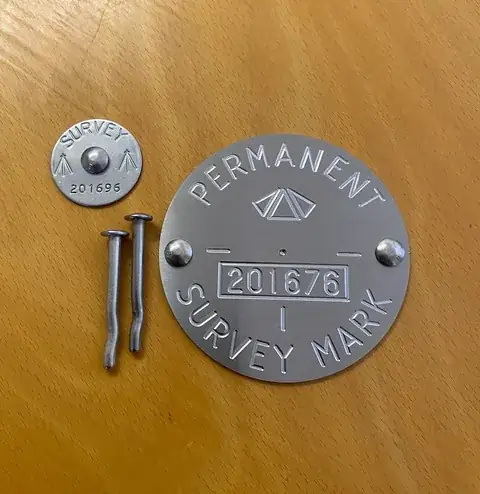

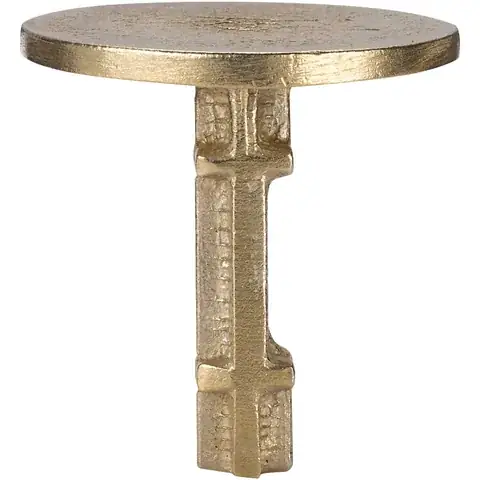

This product is intended for survey practices, civil sites, environmental field teams and plot-monitoring projects. The identifier links coordinates, point, plot or well number to field records so the same location can be found years later. Set the point list, coordinate or permit fields before weather-resistant construction for pin, stake, post or tie mounting. Permanent field markers for survey points, boundaries, plots and geospatial references. Survey markers preserve a point identifier and project reference in exposed ground, wall or structure locations. Shape and fixing depend on whether the marker is driven, bolted, pinned or attached to a post. The product is defined by a fixed geospatial reference and field installation rather than a utility asset alone. Zheye produces the marked metal tag or plate. Cable ties, banding and specialist fasteners are supplied as matched bought-in components. This page presents one standard model, UV-11-AL-ANOD, in Anodized aluminium. Dimensions, processes and acceptance notes on this page refer to this representative construction.
Applications
- Boundary surveys
- Construction control points
- Environmental plots
Buyers and teams
- survey practices, civil sites, environmental field teams and plot-monitoring projects
Materials
- Anodized aluminium
Marking
- Deep engraving
- Mechanical stamping
- Sequential point codes
- QR Code when suitable
Installation
- Survey nail or pin
- Screws
- Post mounting
- Adhesive only after site review
Specifications
| Field | Documented value |
|---|---|
| Material thickness | Anodized aluminium 0.5-3.0 mm |
| Reference | Point, plot or project code |
| Form | Plate, disc or post-compatible marker |
| Fixing | Selected for substrate |
| Location data | Customer-supplied |
Recommended project inputs
- Survey Markers; point or well list, coordinate and permit fields, site photo, mounting method, exposure and quantity.
- State the identified object, material/surface, available space, orientation, holes/ties/adhesive/matched tool and provide a site photo where possible.
- Provide length, width/diameter, thickness, corners/edges, holes/slots, fit tolerances and any keep-clear or no-adhesive zones.
- Supply final text, units, graphics, colour, language, serial/barcode/RFID rule, human-readable data and one approved revision; numbers shown in sample images are never treated as production data.
- State temperature and dwell, indoor/outdoor use, UV, water, oil, cleaner/chemical, abrasion, vibration, read conditions or other real exposure together with test method and pass/fail criterion.
- Provide prototype and production quantity, start/end and permitted-gap rules, grouping, packing sequence, batch documents and target delivery.
- Where regulation, certification, permit, ethics, brand authorisation or customer specification applies, provide the applicable revision and owner-approved file; a product name or image cannot replace it.
Continue with this product
Discuss Survey Markers
Include product code UV-11 with the project inputs that apply.
